Lattice Girders/ Truss Girders
Definition:

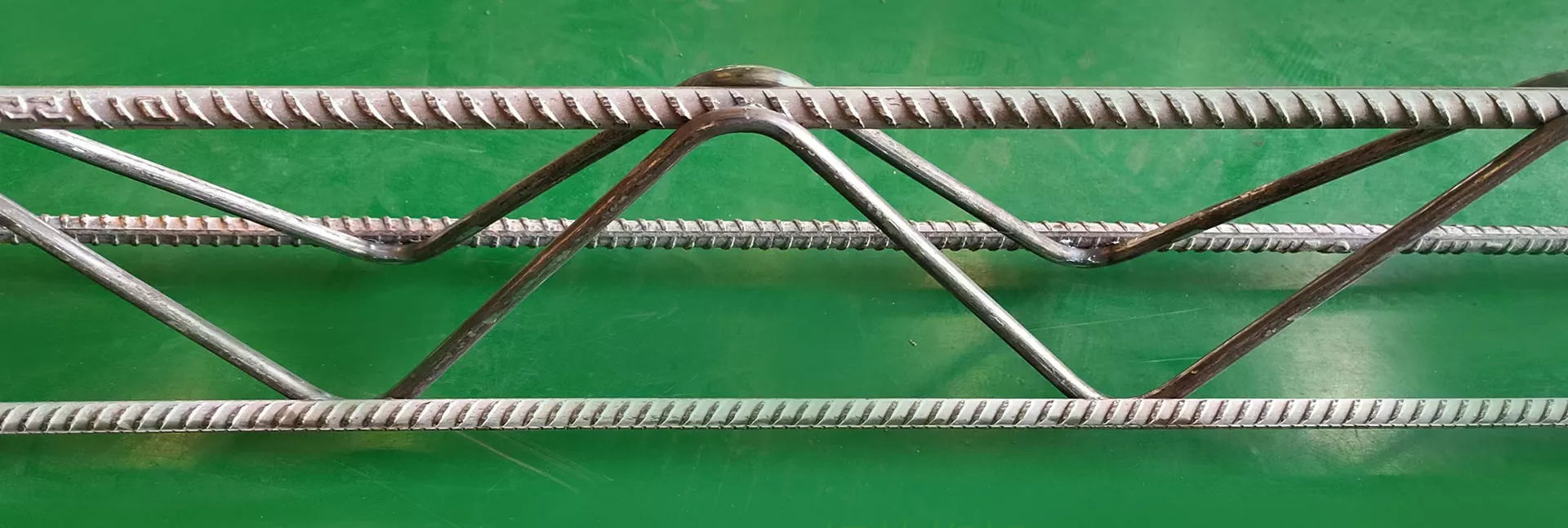

Steel lattice girders (truss girders) are composed of one upper deformed bar, two lower deformed bars and two "z" shaped round wires.
Parameters:
- Material: Cold-rolled ribbed bars/ Hot-rolled ribbed bars/ plane bars to respective standards,
- Diameter: 5mm~12mm,
- Interval: 200mm, custom size negotiable,
- Length: ≤12m,
- Height: 50~300mm，
- Properties: to respective production standards.
Production Standard:
YB/T4262-2011, Lattice girder for the reinforcement of concrete (Chinese),
Other standards negotiable.
Parameters:
- Material: Cold-rolled ribbed bars/ Hot-rolled ribbed bars/ plane bars to respective standards,
- Diameter: 5mm~12mm,
- Interval: 200mm, custom size negotiable,
- Length: ≤12m,
- Height: 50~300mm，
- Properties: to respective production standards.
Production Standard:
YB/T4262-2011, Lattice girder for the reinforcement of concrete (Chinese),
Other standards negotiable.
inquiry
Tags:
Heavy-Duty Truss Girderlattice girdersMGBRCsteel lattice girderssteel truss girderstruss girders
Short Description
The Steel lattice girders/ Truss Girders manufactured by MGBRC are used as reinforcement of precast concrete buildings, steel structures and high-speed railways, etc.
Application Fields
1. Transportation Industry
High-speed railway ballastless track.
2. Building Industry
Precasted concrete buildings (slabs, walls), and prefabricated Truss Deck in steel structures.
3. Others
New type of construction formwork.
